21CCP棉紡機同步輪， 30CCP美標大節距QD錐套同步輪 32CCP大節距QD同步輪 38CCP同步輪廠家-邁動工業

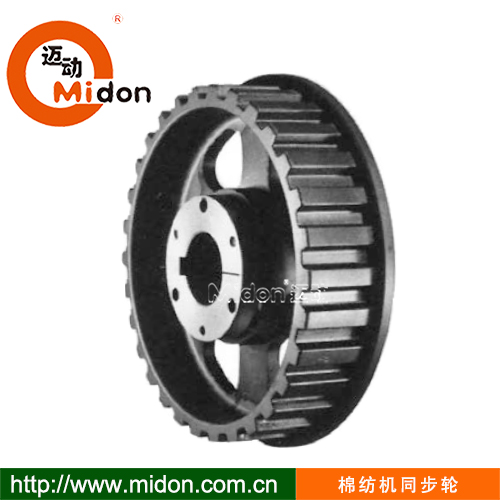

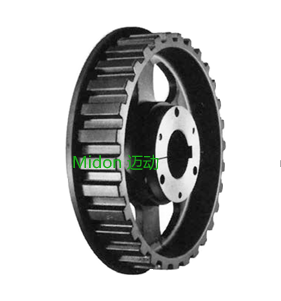

21CCP cotton spinning machine synchronous wheel 30CCP cotton spinning machine cleaning machine synchronous wheel 32CCP, QD cone sleeve synchronous wheel 38CCP synchronous wheel manufacturer-Midon

棉紡清潔機同步輪在棉紡機械中扮演著至關重要的角色，尤其是在需要精確同步傳動、

高可靠性和低維護的地方，其特性和優點如下：

1.  大扭力，單檔邊，易裝折, QD錐套脹緊，無間隙，防棉纖沉設計：厚實，耐用。High torque, single-stage edge, easy to assemble and fold, QD cone sleeve tightly expands without gaps, anti cotton fiber sinking design: thick and durable.

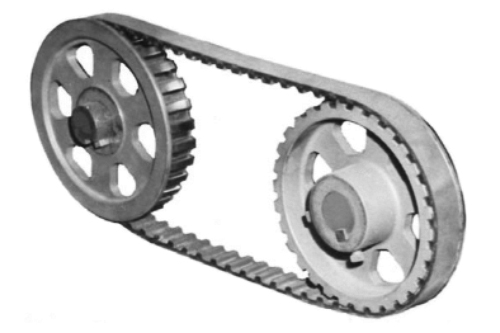

2.精確的同步均速傳動： 通過輪齒與同步帶齒的嚙合傳動，實現主動輪與從動輪之間嚴格的無滑差傳動。精確的速度比和相位關系，對于棉紡機至關重要，例如牽伸區的多個羅拉必須保持精確的速度差（牽伸比），卷繞機構需要精確的卷繞速度和導紗動程配合，否則會導致紗線質量嚴重下降（條干不勻、細節、粗節、斷頭等）。Accurate Accurate synchronous equal speed transmission: Through the meshing transmission of gear teeth and synchronous belt teeth, strict slip free transmission is achieved between the driving wheel and the driven wheel. Accurate speed ratio and phase relationship are crucial for cotton spinning machines. For example, multiple rollers in the stretching zone must maintain precise speed differences (stretching ratio), and the winding mechanism requires precise winding speed and yarn guide stroke coordination, otherwise it will lead to serious deterioration of yarn quality (uneven yarn, details, coarse knots, broken ends, etc.)

3.  高傳動效率：嚙合傳動方式減少了摩擦損失（相比摩擦傳動如平帶、V帶），傳動效率通常在98%以上。這降低了能耗，對于長時間、高負荷運行棉紡廠具有經濟效益。

High transmission efficiency: The meshing transmission method reduces friction losses (compared to friction transmission such as flat belt and V-belt), and the transmission

efficiency is usually above 98%. This reduces energy consumption and has economic benefits for cotton mills operating at high loads for long periods of time.

4.  良好的沖擊負載能力：齒形嚙合設計使其能夠傳遞較大的扭矩，同時保持同步精度。能夠適應棉紡機中啟動、變速、負載波動等工況。

Good impact load capacity: The tooth meshing design enables it to transmit large torque while maintaining synchronization accuracy. Capable of adapting to working conditions such as starting, variable speed, and load fluctuations in cotton spinning machines.

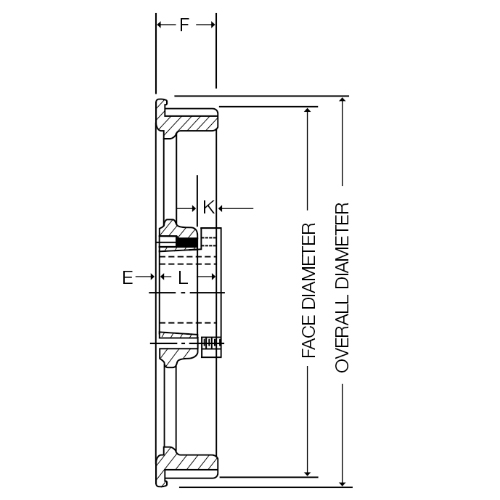

同步輪尺寸

長度可以訂制同步帶尺寸：P=1=25.4MM

60CCB150  61CCB142  63CCB165  64CCB170  65CCB175
